FLAMECEASE FC100 FIRE PROTECTION COATING

FLAMECEASE FC100 FIRE PROTECTION COATING

Part Number: FC100
Brand: SEALXPERT
-
-
Require Official Quotation and Tax Invoice?

Click Request a Quote, fill up the details and submit.

[At the payment section, select Request a Quote or Request a Tax Invoice. (You dont need to make payment doing so).]

Alternatively, you may also send us an email to sales@spilldoc.sg with your company details and purchase requirements.

Once received your submission, our local sales team will contact you within 1 business day.

Become our Reseller/ Distributor

If you're a reseller or a contractor considering a frequent purchases, you may request for a special quote with discounts.

Kindly send us an email at sales@spilldoc.sg and our local sales team will be with you within 1 working day.

Quick Question?

WHATSAPP CHAT WITH A SALES CONSULTANT

FLAMECEASE FC100 FIRE PROTECTION COATING

FC100

929 FC100 - Fire Protection
fire protection - Fire Protection


FEATURES:

  • Low installation cost
  • High Durability Fire Tested under British Standard 476 Part 6, 7 & 20
  • Contains no halogenated flame retardant
  • Excellent lap shear, tensile, and compressive strength
  • More specific to address complex issues with different resin types

APPLICATION:

  • Ideal for use in:
    • Petrochemical plants
    • Chemical processing plants
    • Gas processing facilities
    • Refinery facilities
    • Pipe rack beams and columns
    • Vessel skirts and supports
    • Tank saddles
    • Silo top
    • Automotive/aircraft parts
  • Suitable for both interior and exterior applications
  • Suitable for onsite and offsite application
  • Apply by using brush or paint roller
  • Can be used as primer, fire protection coat and top coat, 3-in-1
  • May apply any epoxy base paint coating after FC100 base on personal preferences for aesthetic purpose

TECHNICAL DATA:

Gel time : 15 min
Gel to peak exotherm : 18 min
Total time to peak exotherm : 28 min
Peak exotherm temperature : 174°C (345 °F)
Barcol hardness : 49
Tensile strength : 6672 psi (469 kg/cm 2)
Tensile modulus : 73 x 10 9 pa
Heat distortion temperature : 117°C (243 °F)@ 264 psi (19 kg/cm 2)
Adhesive strength : 1958 psi (138 kg/cm 2)
Tensile elongation : 2.8%
Flexural strength : 23931 psi (1683 kg/cm 2)
Flexural modulus : 6.8 x 10 9 pa
Fire Resistance Recommended Coating Thickness (I-Beam) Product Usage Per Coating
1 hour fire
protection		 1.0 mm thk / 2 coatings 800 grams / m 2
2 hours fire protection 1.5 mm thk / 3 coatings 800 grams / m 2
3 hours fire protection 3.5 mm thk / 7 coatings 800 grams / m 2

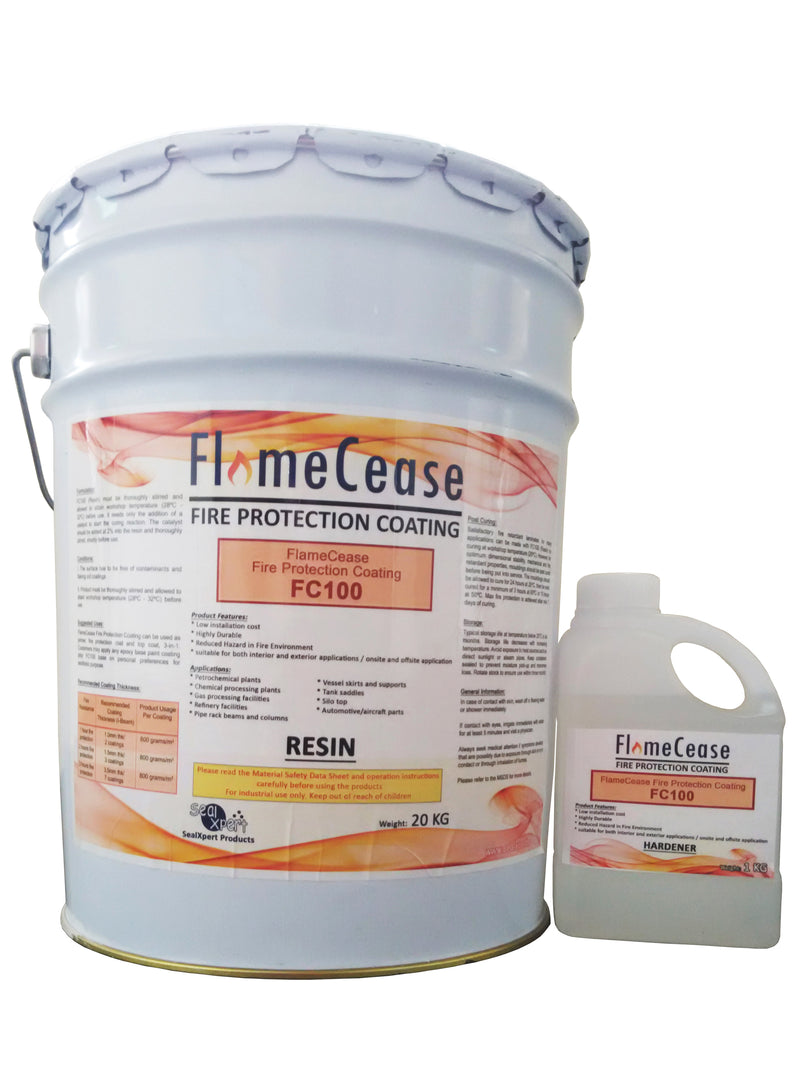

PACKAGE:

  • FC100 Resin (20kg)
  • FC100 Hardener (1kg)

Stocks Availability

Stocks are available, subject to prior sales.
For customisation and project specific order, lead time for production and delivery may be required.
