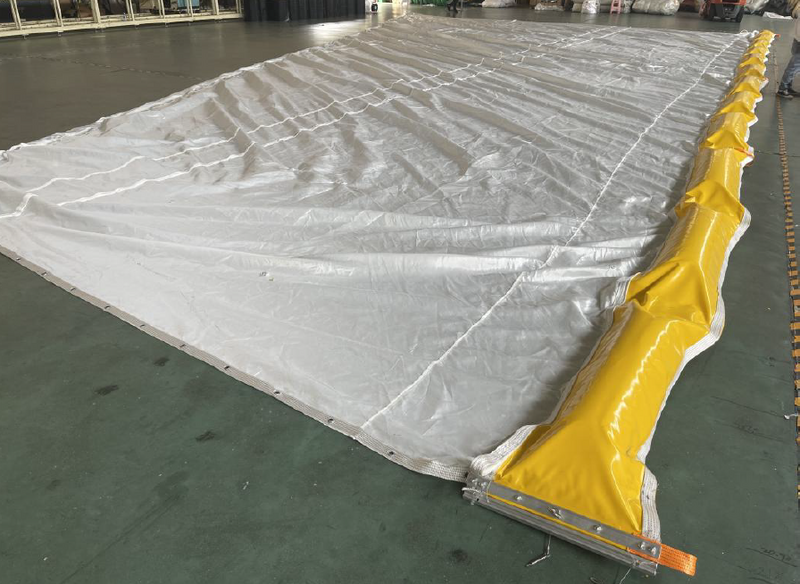

Spilldoc® Type III Economy Silt Curtain
SDT3ESC Part Number: SDT3ESC
Brand: Spilldoc

Floating Silt curtains are floating barriers used in marine construction, dredging, and reclamation projects to control the silt and sediment in a body of water,is be also referred to as Turbidity Screen,Silt Boom,Sediment Curtain,Silt Boom etc. Silt curtains can be set up to keep construction areas in compliance and protect the environment.

Spilldoc Silt Curtain Skirt is made by permeable or impermeable fabric and are fabricated to any size that will fit your specific application.

Spilldoc Silt Curtain can support customization.

Features:
-Control of sediment and run-off from marine construction sites;
-Easy to operate;
-Effectively protect ecological environment;

Type 3 Silt Curtain should be used in areas where considerable current (up to 3 knots or 5 feet per second) may be present, where tidal action may be present, and/or where the curtain is potentially subject to wind and wave action. Floating Silt Curtains are used to control and contain silt and sediment within an immediate work area, thereby preventing anything from floating outside of the dredging area and affecting marine life. Floating Silt Curtains protect our waters and environment.

Type 3 DOT Heavy Duty and Tidal Water Floating Silt Curtains are normally used by DREDGING CONTRACTORS working in PORTS and surrounding waters.

 Application:

-Harbors
-Ports
-Shoreline
-Offshore

Floating Silt Curtains are available in 20m per section or any custom length up to 20m. The skirt can be as deep as required  by project requirements.



Specification
Product Description
Spilldoc® Type III Economy Silt Curtain
Part Number SDT3ESC
Float Cover Fabric
32 oz PVC (Orange / Yellow)
Float Size 200 mm
Permeable Skirt 100 kN/m Geotextile Skirt
Skirt Depth As per requirement
Top Tension Member
Ø6 mm Stainless Steel Top Cable
Bottom Weight Chain
Ø10 mm Hot Dipped Galvanized Chain
Section Length 15m, 20m, 30m per section
Total Quantity As per requirement
Connector Type
High-tensile-strength aluminum ASTM connector at float and top tension cable with Zinc Anode
Locking Pins Stainless Steel locking pins
Skirt Reinforcement
Lacing grommets on reinforced fabric on lower skirt
Section Connection
Chain ends shackled section-to-section
Connection Method Tool-free connections
Material of Metal Fittings
All bolts, nuts, and shackles in SS316L
Packaging Loose Package

NOTE: Float size is determined by skirt depth and or your job requirements.

Stocks Availability

Stocks are available, subject to prior sales.
For customisation and project specific order, lead time for production and delivery may be required.
