SPILLDOC COMBINATION SHOWER & EYEWASH STATION SDSE304

Part Number: SDSE304
Brand: SPILLDOC
Original price - Original price
Original price
-
Current price
Require Official Quotation and Tax Invoice?

Click Request a Quote, fill up the details and submit.

[At the payment section, select Request a Quote or Request a Tax Invoice. (You dont need to make payment doing so).]

Alternatively, you may also send us an email to sales@spilldoc.sg with your company details and purchase requirements.

Once received your submission, our local sales team will contact you within 1 business day.

Become our Reseller/ Distributor

If you're a reseller or a contractor considering a frequent purchases, you may request for a special quote with discounts.

Kindly send us an email at sales@spilldoc.sg and our local sales team will be with you within 1 working day.

SPILLDOC COMBINATION SHOWER & EYEWASH STATION SDSE304

c/w pressure reducing valve for eyewash

Download Catalogue

Brand: Spilldoc
Material: 304 Stainless Steel
Type: Floor Mounted Plumbed Combination Shower & Eyewash
Activation: Hand Push Plate & Foot Pedal
Standard: ANSI/ISEA Z358.1-2014, CNSI14251 T2048-1998, DIN 12899
Warranty: 2 Years from product supply against manufacturing defects

Technical Details

Model SDSE304
Dimension
All height ═ 2350㎜
Shower height ═ 2150㎜
Eyewash height ═ 1080㎜
Bore
Supply water:1-1/4" SUS304# stainless
Waste bore:1-1/4" SUS304# stainless
Shower tube: 3/4" SUS304# stainless
Eyewash tube: 3/8" SUS304# stainless
Connection
Supply water:1-1/4" D (PT)
Waste bore:1-1/4" D (PT)
Spary
Head

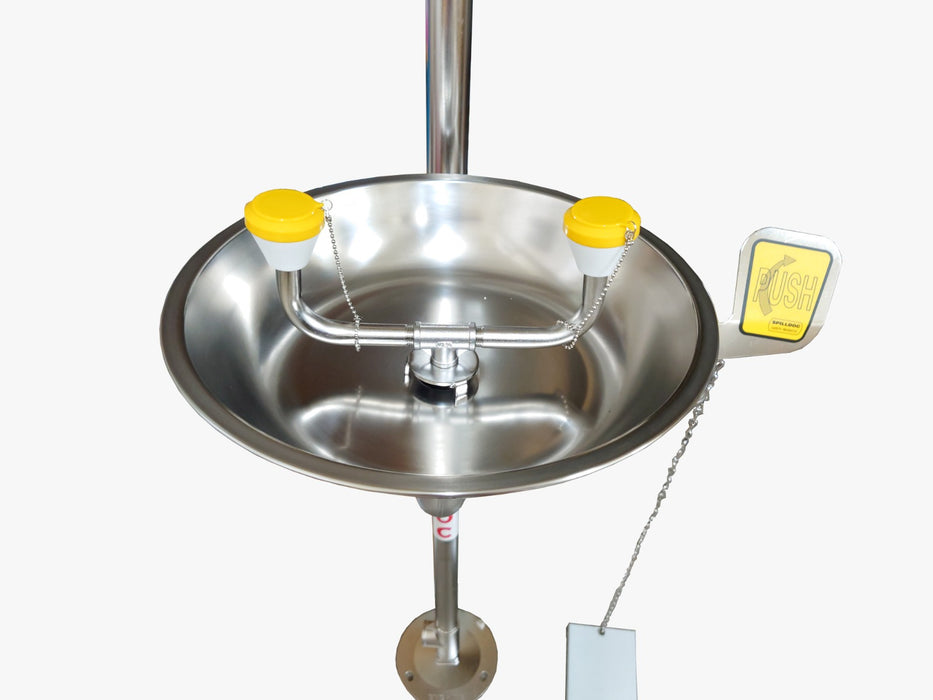

Eyewash head are Nylon material,Φ50㎜ x 44(H)㎜,include two kind filters, with yellow plastic floating cover. Basin dimensionΦ345㎜.
Shower head are Nylon material.DimensionΦ200㎜.
Hydraulic
pressure
Above 1 kg/cm2
Action
Shower : A stainless actuator(stay open or close)
Eyewash :
Hand and foot operated with special 8 shape stainless chain.
Features
1. All tube are stainless SUS304# material with special antirust process
2. Included sign(305 x 230㎜,English with graph)
3. Meet ANSI/ISEA Z358.1-2014, CNSI14251 T2048-1998, DIN 12899
4. Dimension Error ±2%


Features : All tubes are stainless SUS304# material , with special antirust process

Using Environment: Places where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and other contaminated environment where may be burning.

This floor mounted Safety shower & eye wash station SDSE304 is used to temporarily slow down the further harm of harmful substances to the body, face and eyes of the staff when toxic and harmful substances (such as chemical liquid, etc.) are splashed on the staff's body, face and eyes or the fire causes the staff's clothes to catch fire. Further treatment and treatment need to follow the doctor's guidance to avoid or reduce unnecessary accidents.
