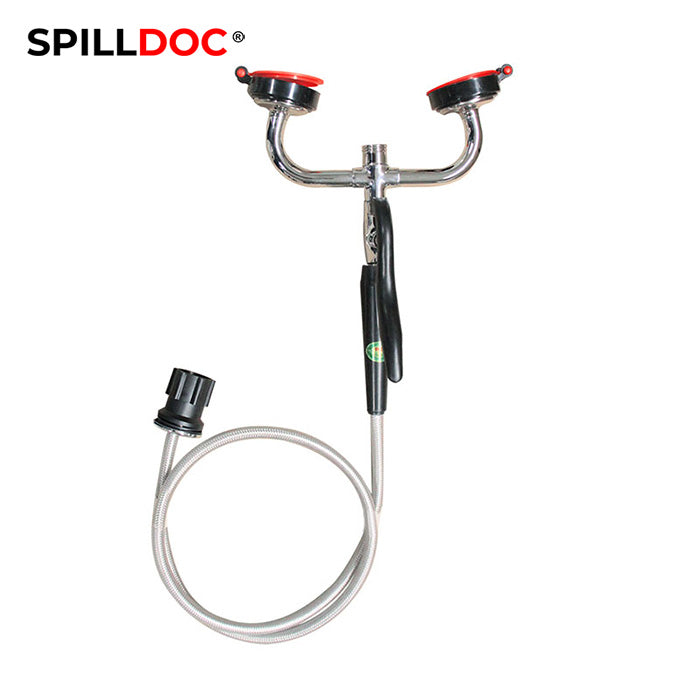

Spilldoc Counter Mounted Drench Hose with dual nozzles

Model No: SD-504
Material: 304SS
Standard: ANSI Z358.1-2014
Warranty: 12 Months from product supply against manufacturing defects

Features

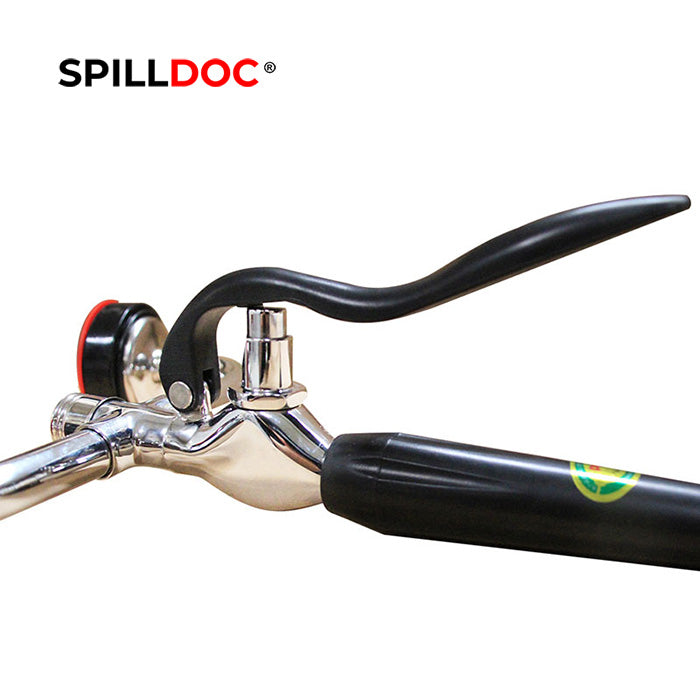

Switch: Water flow starts within 1 second, easy to use.
Eye Wash Flow ≥11.4 L/Min

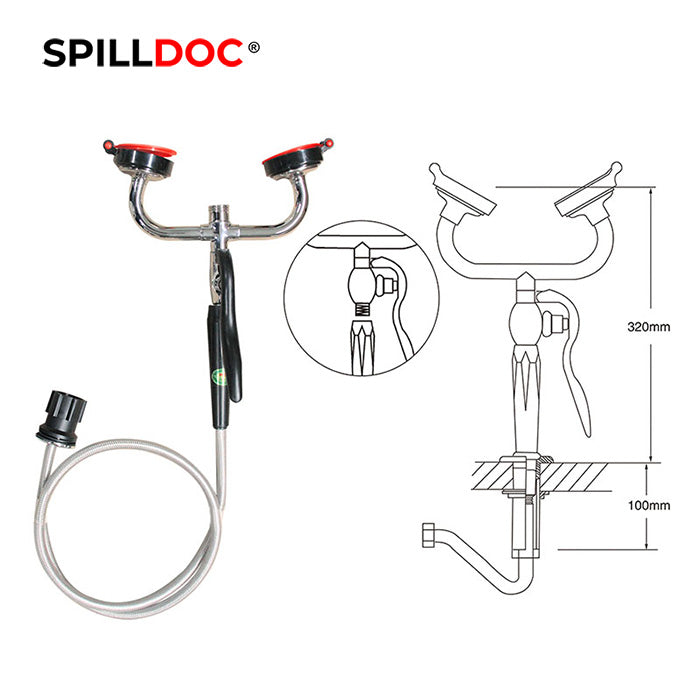

Height: 300 mm from mesa

The eye wash station with its delicate design is suitable for emergency washing in medical, laboratory, and some public places. The main body is thick copper, the coating uses high-brightness thick plating, corrosion resistance, heat resistance, and anti-ultraviolet radiation.

Use our Counter Mounted Drench Hose SD-504 for an immediate response to remove toxic or harmful substances from your eyes or face. It can be mounted side of the sink such that when pulled down from sideways, water flows automatically and comes down into the sink.

Should an accident involving chemicals or regents occur in a laboratory or a workplace, it is extremely important to immediately flush out the harmful substances from our bodies.  The first 10 to 15 seconds after exposure to a hazardous substance such as corrosive substances are very critical for the personal safety of an individual.

Accidental chemical exposures can still occur even with good engineering controls and safety precautions. As a result, it is essential to look beyond the use of goggles, face shields, and procedures for using personal protective equipment. Emergency showers and eyewash stations are necessary backups to minimize the effects of accident exposure to chemicals.

SPECIFICATION

Product name
Counter Mounted Drench Hose with Dual Nozzles SD-504
Brand
SPILLDOC
Model
SD-504
Certificate
CE, ISO
Standard
ANSI Z358.1-2014
Valve
Eye wash valve is made of 1/2” 304 stainless steel ball valve
Waste
1 1/4" MNPT
Eye Wash Flow
≥11.4L/Min
Hydraulic Pressure
0.2MPA-0.6MPA
Original Water
Drinking water or filtered water
Material
304 stainless steel and ABS bowl
Using Environment
Laboratories and hospitals where there is a possibility of accidental spills and splashing of hazardous liquids such as acids and chemicals.
Special Note
If the acid concentration is too high, recommend using 316 stainless steel.
When using ambient temperature below 0℃, use antifreeze eye wash.
