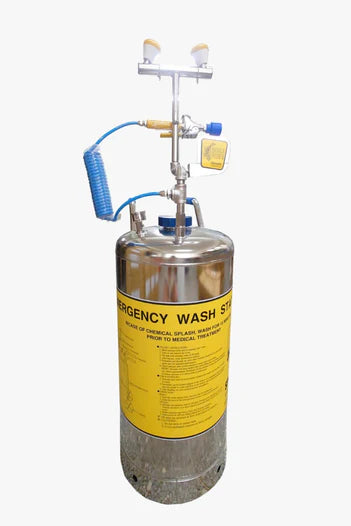

Spilldoc Portable Self-contained Emergency Wash Station

SDEEWT60

Model: SDEEWT60
Brand: Spilldoc
Type: Portable, Pressurised, Self-Contained
Compliance: ANSI/ISEA Z358.1-2014, CNSI14251 T2048-1998, DIN 12899
Warranty: 1 Year from product supply against manufacturing defects
Exterior Dimension: 41x62x127 (LxWxH)/cm
Weight: 22 Kg


SPECIFICATION

Model

SDEEWT60

TANK

Material

SUS304# stainless

Dimension

Ø350 X 750(H)mm

Volume

60 Liter(15Gallons), Supply for above 15 minutes flushing

Self  Valve

Brass relief valve automatically opens at 120 psi to prevent vessel over-pressurization

Air Gauge

Air gauge with easy to read graphic face to simplify tank pressure monitoring

Level Indicator

Level indicator at the back of tank , you can see the water level from the red float

Wheel

It is easy to move the equipment , just with the handle at the back , wheel is turn on to everywhere

Pressurization Port

It is easy to do the pressurization work by compressor or car equipment.

EQUIPMENT

Dimension

350(W) X 600(D) X 1200(H) mm

Eyewash height

1140 mm

Eyewash tube

1/2" SUS304# stainless

Spray head bore

3/8" SUS304# stainless(PT)

Spray head

Nylon material Φ50㎜ x 44㎜ (H) ,Includ two kind filter with yellow plastic floating cover.

Action

Hand push plate

Actuator

1/2" brass valve

WASH HOSE

Material

Brass body with PVDF seal for avoiding leaking

Handle

PVC material

Hose

1/4" blue PU hose tube

Action

Push the handle to open water , fixed clip make it continuing working automatically

Features

1.All tube are stainless SUS304# material , with special antirust process.

2.Include sign(380X600mm,Chinese & English language with graph)
